NDR Series DIN Rail Power Supply
NDR Series DIN Rail Power Supply
NDR Series DIN Rail Power Supply
NDR Series DIN Rail Power Supply
NDR Series DIN Rail Power Supply
NDR Series DIN Rail Power Supply
NDR Series DIN Rail Power Supply

DIN Rail Power Supply

DIN Rail Power Supply: Compact, High-Efficiency Supplies
  • Energy Saving: High efficiency up to 95%, reducing heat loss.
  • Global Compatibility: Wide range AC input (100-240V).
  • Safety First: Full protection against short circuit, overload, and overvoltage.
  • Rugged Design: Metal casing suitable for harsh industrial environments (-25°C to +70°C).
Power Consumption
–
Cutting Interval
–
Voltage
/
Beam Angle
–
LED Pitch
–
Max Run Length
–
View Datasheet
Download Images
Request Quote
CE
CE Certified
RoHS
RoHS Compliant
CRI
High CRI
3 Years
Warranty
Options
Flexible PCB
Bendable
/
Low Voltage

Product Options

Colour Temperature
2700K
3000K
3500K
4000K
5000K
6500K
Wattage
4.8W/m
9.6W/m
14.4W/m
Lumens
220 lm/m
1650 lm/m
Type
CRI
LED/M
CCT
IP
Cutting
Lumen (lm/m)
Power
Width
Downloads

Overview

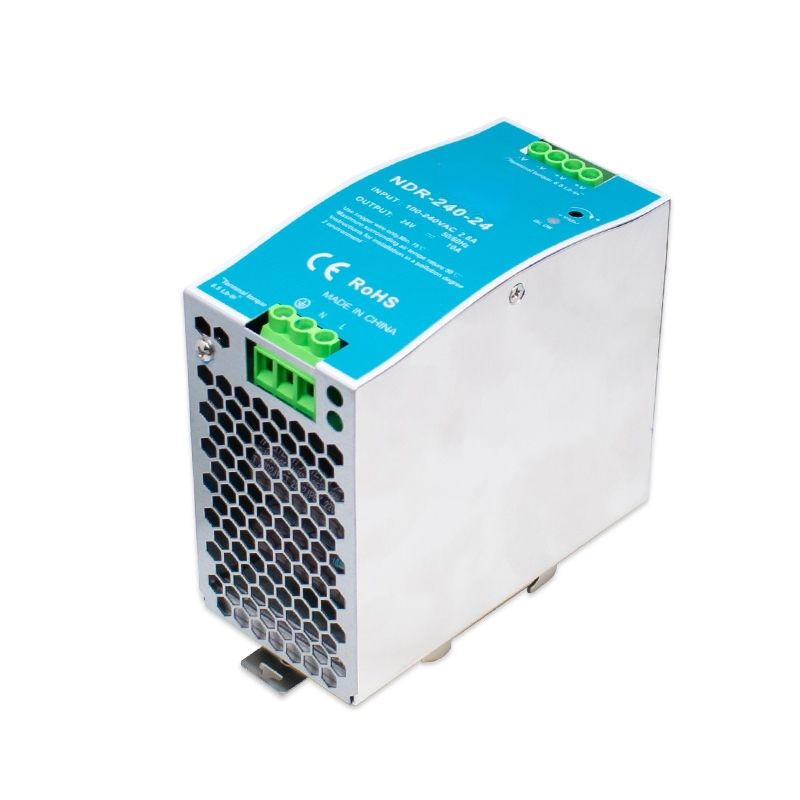

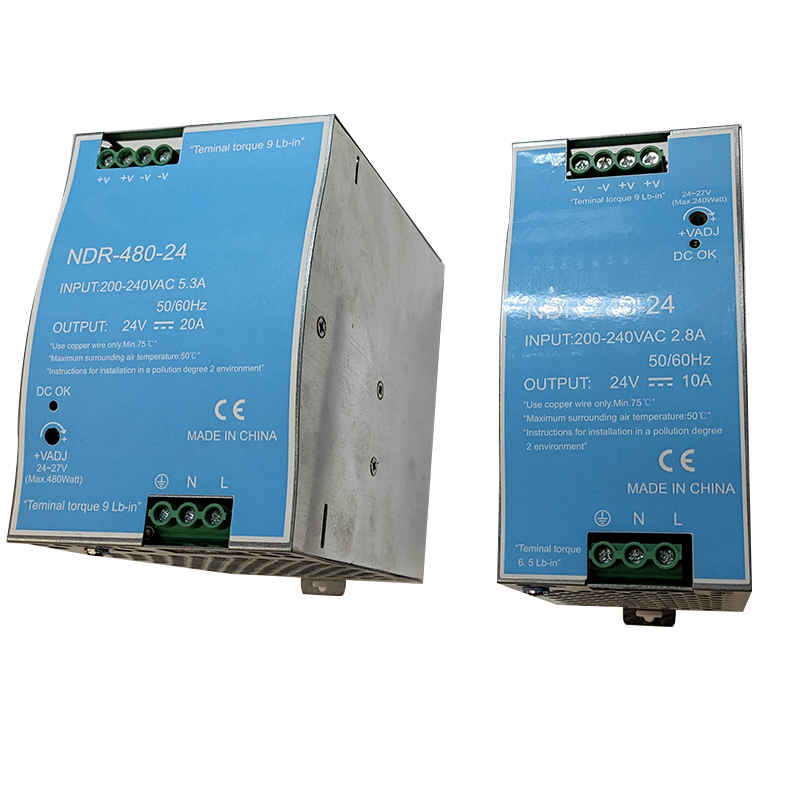

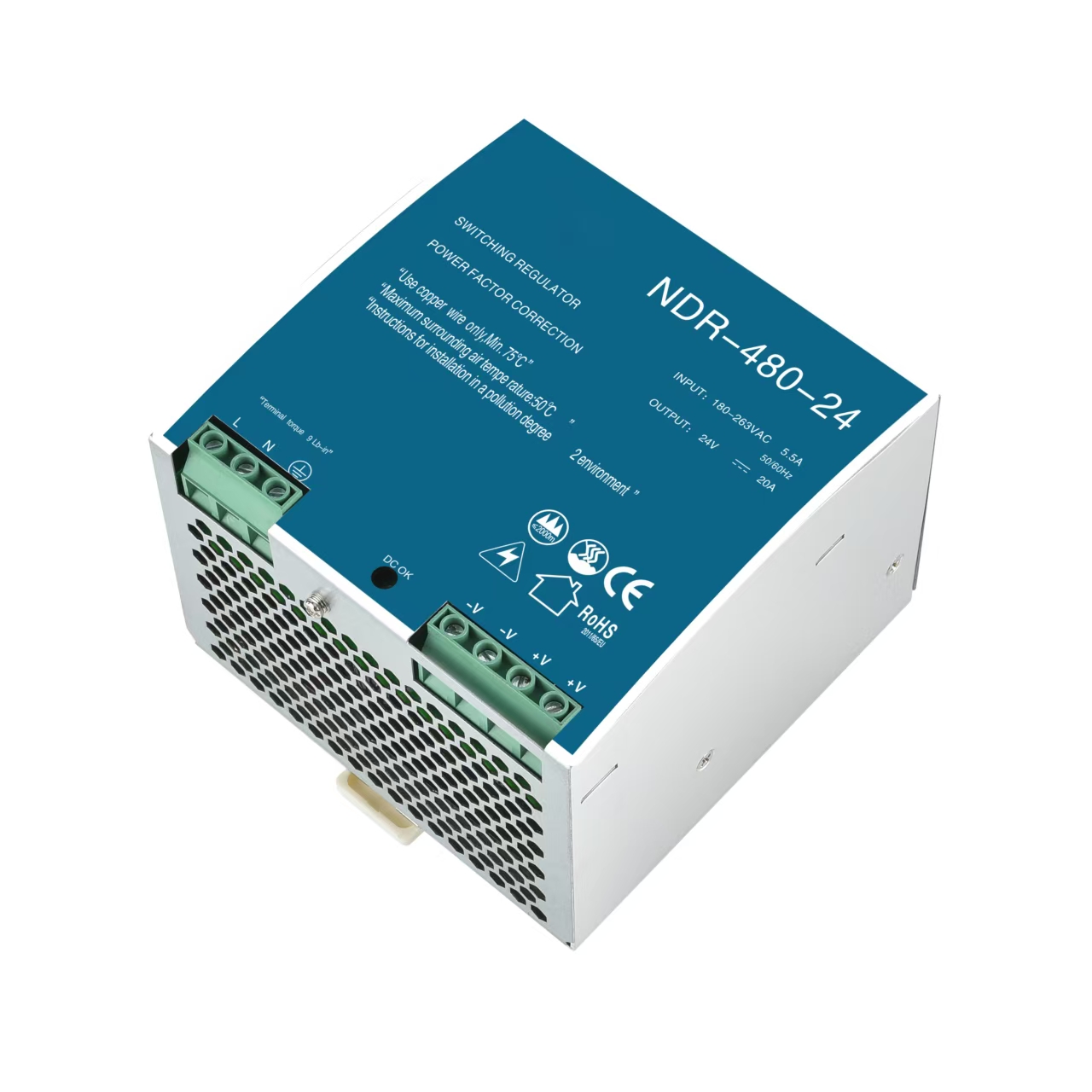

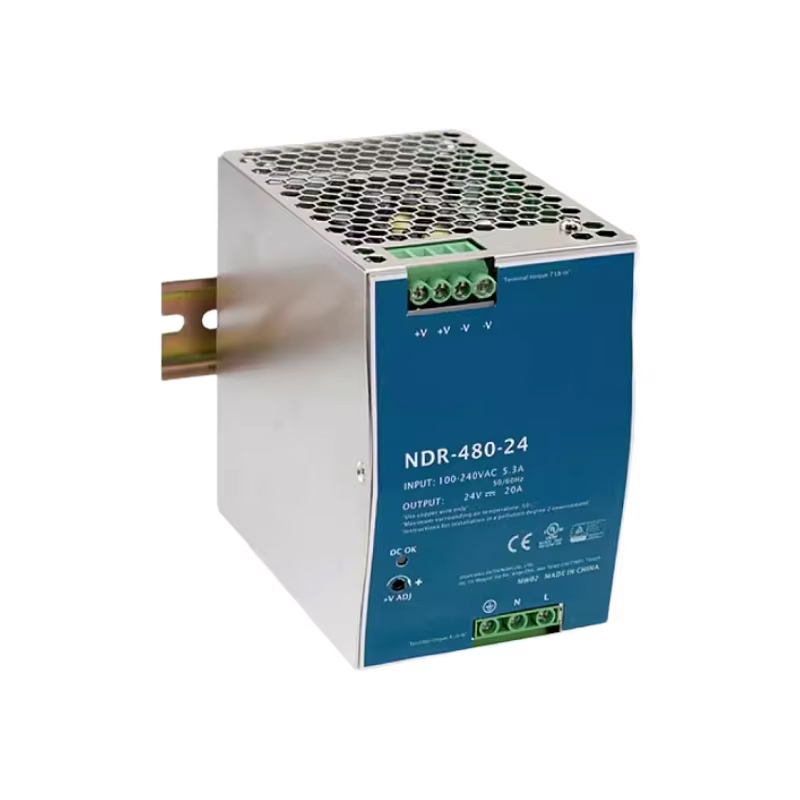

The DIN Rail Power Supply is a family of ultra-compact DIN rail power supplies designed for control cabinets and industrial automation. Available in 240W (NDR-240-24) and 480W (NDR-480-24) models, they offer high power density and low heat generation. The slim design (40mm and 60mm widths) saves valuable panel space, making them ideal for modern machinery.

Key Features & Benefits

  • Ultra-High Efficiency: With efficiency levels exceeding 95%, the NDR series minimizes energy waste and heat generation, ensuring stable operation even in high-temperature environments.
  • Robust Protection: Equipped with comprehensive protection functions including Short Circuit, Overload, Over Voltage, and Over Temperature protection to safeguard your critical loads.
  • Universal Input: Accepts a wide range AC input from 100VAC to 240VAC, suitable for worldwide installation.
  • Easy Installation: Designed for standard 35mm DIN rail mounting with a clip-on mechanism for quick setup and removal.
  • Reliability: Built with high-quality components and backed by a 2-year warranty.
FeatureNDR-240-24NDR-480-24
Output Power240W480W
Output Voltage24V24V
Output Current10A20A
Dimensions (mm)40 x 125.2 x 113.560 x 125.2 x 128.5
Efficiency>95%>95%
Working Temp.-25°C to +70°C-25°C to +70°C
Inrush Current≤ 50A≤ 50A
ProtectionShort/Overload/OverheatShort/Overload/Overheat





Product Attributes

Additional information

Voltage

12V, 24V

IP Rating

IP20

Application

Indoor
