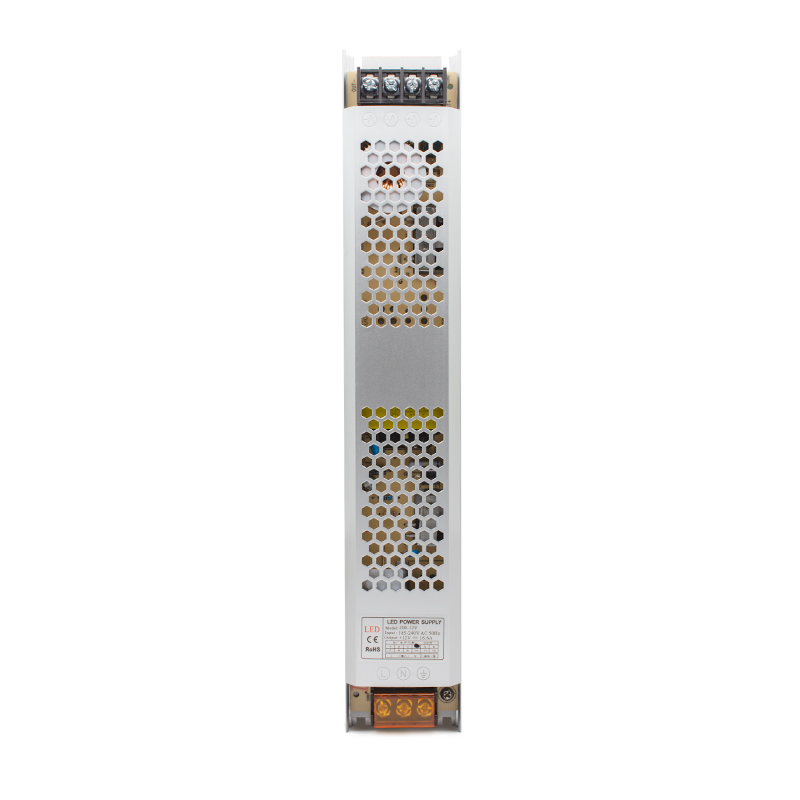

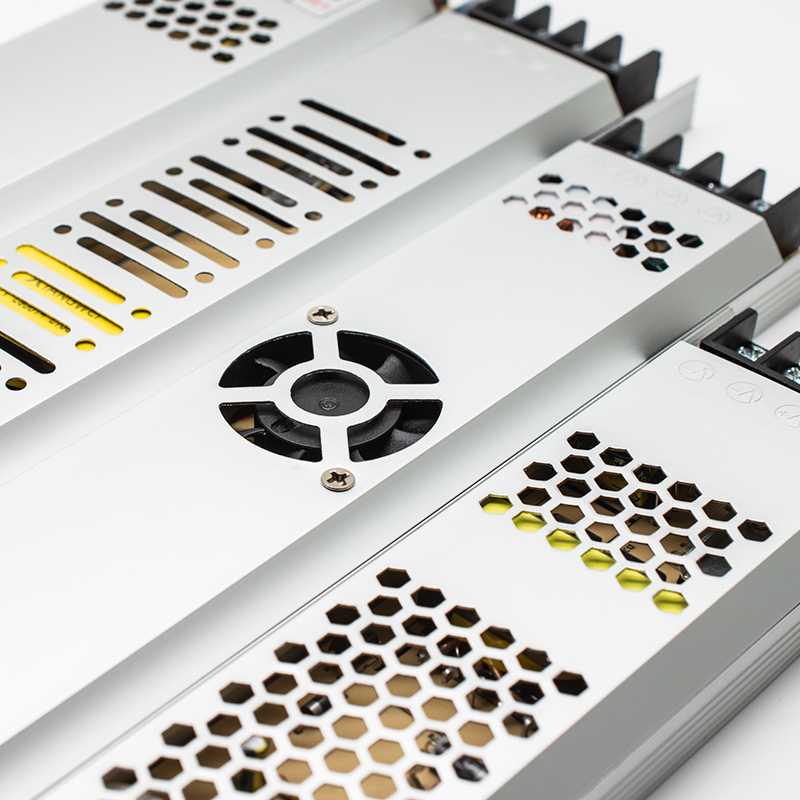

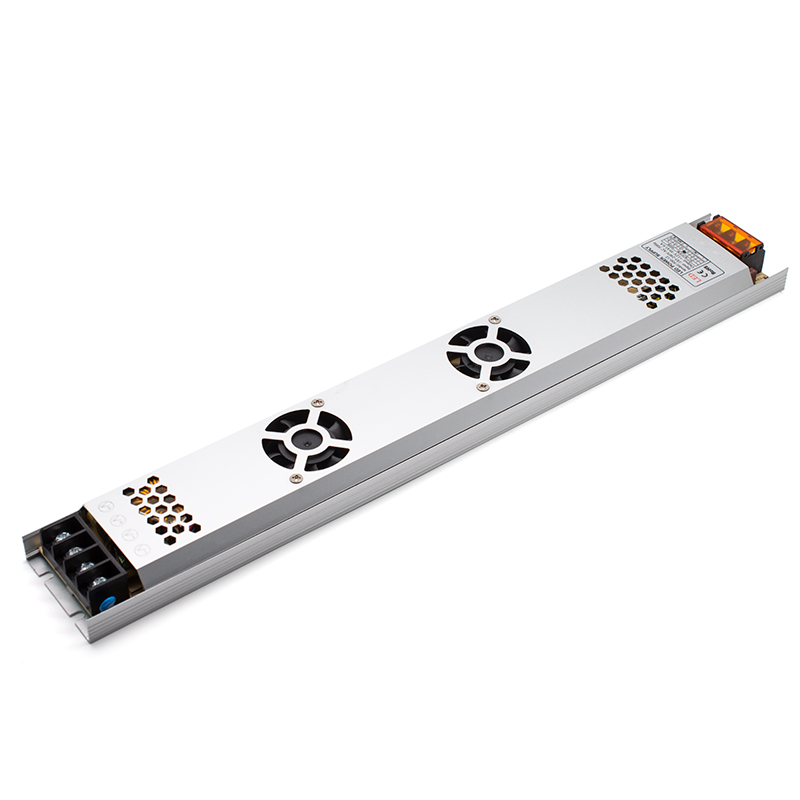

Ultra-thin light box power supply




📦 Light Box Power Supply Series – Constant Voltage for Signage

Specifically designed for LED light boxes, advertising signs, and display lighting. With a wide input range of 180‑260VAC and selectable output (12V or 24V), these power supplies deliver stable constant voltage. All models come with a 2‑year warranty and built‑in short‑circuit, overload, and over‑voltage protection.

✨ Key Features

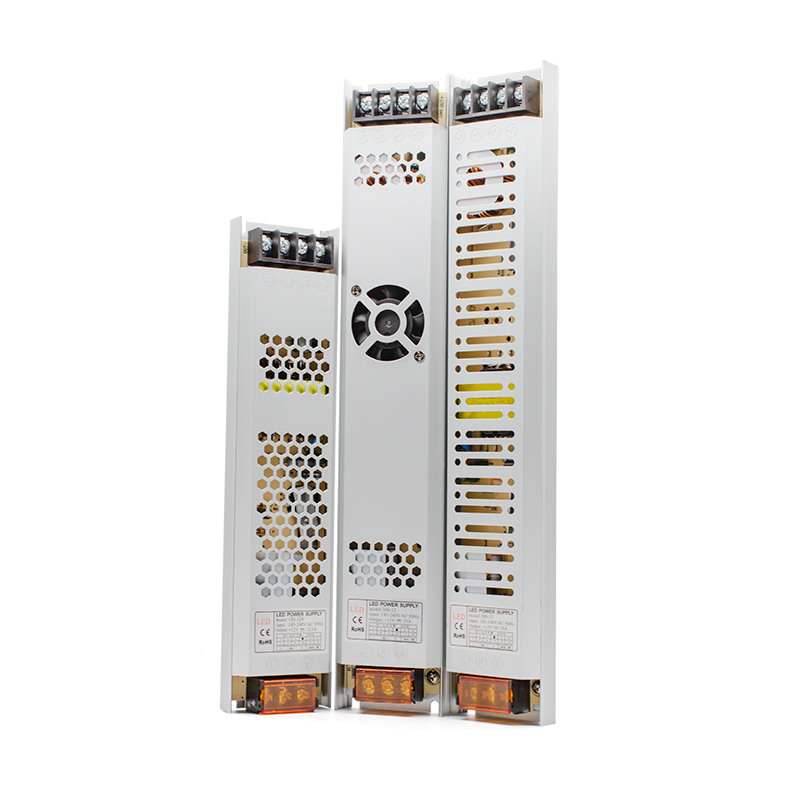

  • Power range: 60W to 500W
  • Output voltage: 12V or 24V (model‑selectable)
  • Input voltage: 180‑260VAC, 50/60Hz

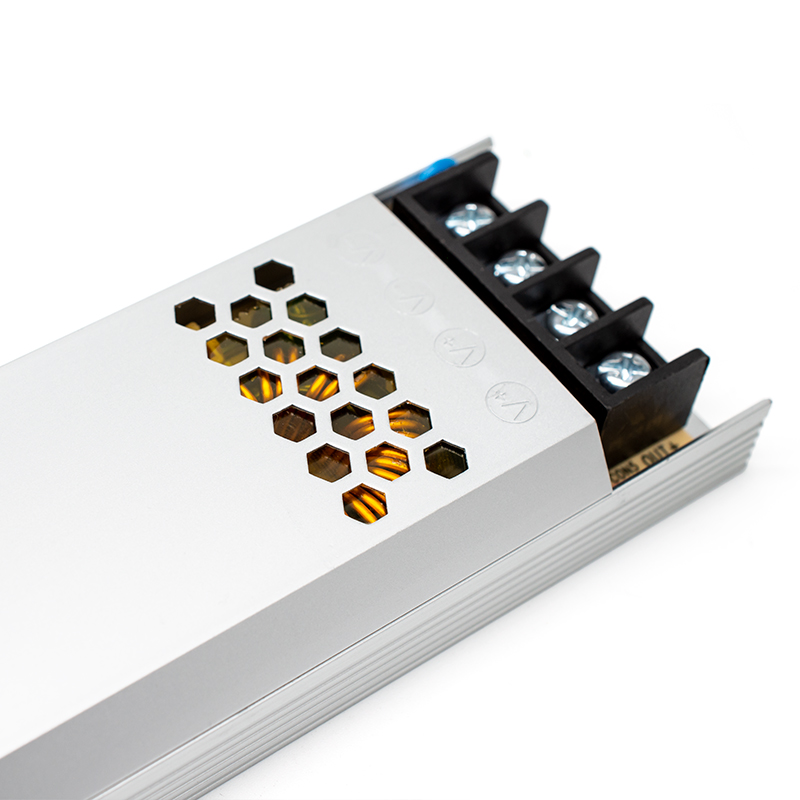

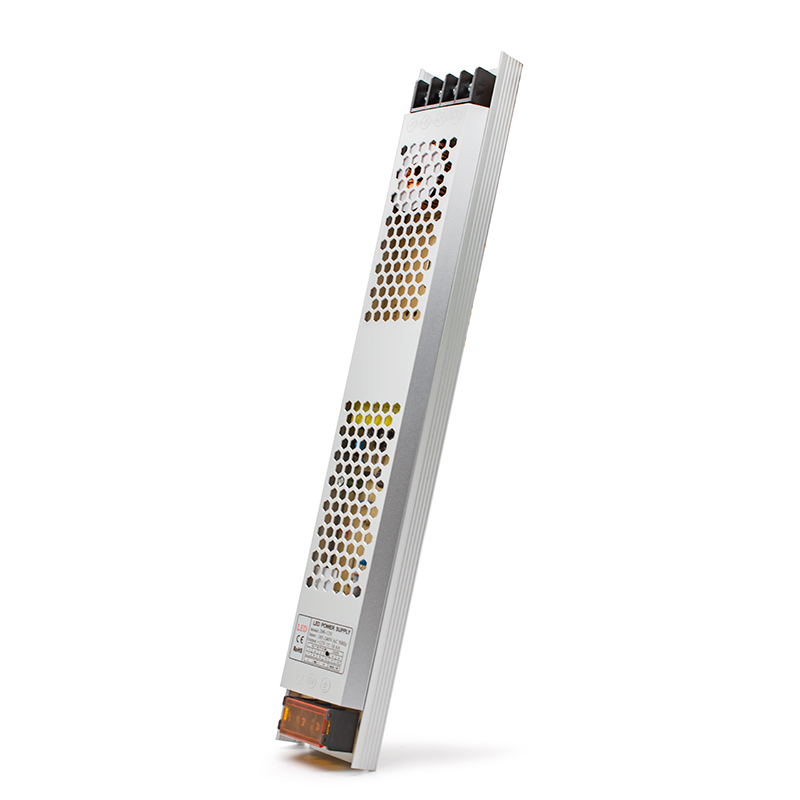

  • Ultra‑slim metal case: heights as low as 20‑21mm
  • Protections: Short circuit, overload, over‑voltage
  • 2‑year warranty

🔹 Applications

LED light boxes, advertising signs, backlit displays, channel letters, and indoor signage.

Power Consumption
–

Cutting Interval

–

Voltage

PCB Width

–

LED Density

–

Luminous Flux

–
View Datasheet
Request Quote
CE

CE Certified

RoHS

RoHS Compliant

High CRI

3 Year

Warranty

IP65/67/68

Options

Flexible PCB

Bendable

Voltage

Product Options

Colour Temperature
2700K
3000K
3500K
4000K
5000K
6000K
Wattage
4.8W/m
9.6W/m
14.4W/m

Custom Wattage Available

Lumens
220 lm/m
1650 lm/m
Type
CRI

LED/M

CCT
IP
Cutting
Lumen (lm/m)
Power
Width
Downloads




ModelPower (W)Output VoltageOutput CurrentSize (mm)Net Weight (kg)QTY/CTNCarton Size (cm)Warranty
60W Light Box60W12V / 24V5A / 2.5A118*53*210.1113056.5*33*19.52 years
100W Light Box100W12V / 24V8.3A / 4.2A163*53*210.1312056.5*33*19.52 years
150W Light Box150W12V / 24V12.5A / 6.25A234*53*210.1770/8036.5*32*27.8 / 56.5*33*19.52 years
200W Light Box200W12V / 24V16.5A / 8.3A308*53*210.246036.5*32*27.8 / 56.5*33*19.52 years
300W Light Box300W12V25A308*53*210.206036.5*32*27.8 / 56.5*33*19.52 years
JY‑F300W300W12V / 24V25A / 12.5A308*53*210.246036.5*32*27.8 / 56.5*33*19.52 years
JY300W300W12V / 24V25A308*53*210.256036.5*32*27.8 / 56.5*33*19.52 years
TK300W300W12V / 24V25A / 12.5A308*53*210.276036.5*32*27.8 / 56.5*33*19.52 years
JY300W (Silent)300W12V25A308*53*210.276036.5*32*27.8 / 56.5*33*19.52 years
JY‑F400W400W12V / 24V33A / 16.7A370*55*200.295039*29*322 years
JY400W400W12V / 24V33A / 16.7A370*55*200.305039*29*322 years
JY‑F500W500W12V / 24V41.6A / 20.8A370*55*200.325039*29*322 years
* Input voltage: 180‑260VAC, 50/60Hz for all models. Protections: short circuit / overload / over‑voltage.
* 150W‑300W models have two possible carton sizes; 400W‑500W share the same carton size.

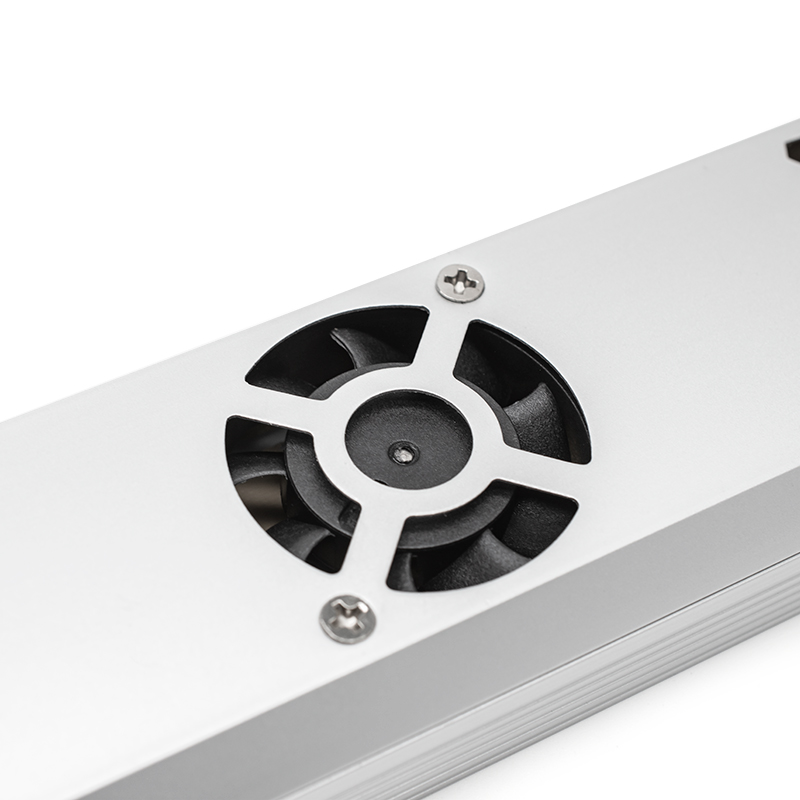

* “JY300W (Silent)” features dual‑tube silent design. All models include 2‑year warranty.
