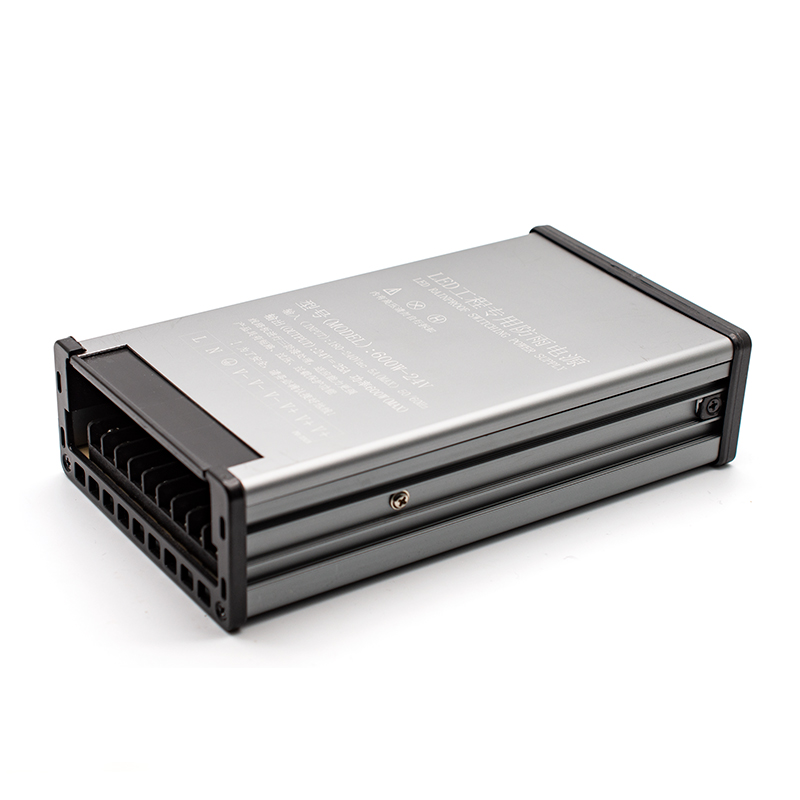

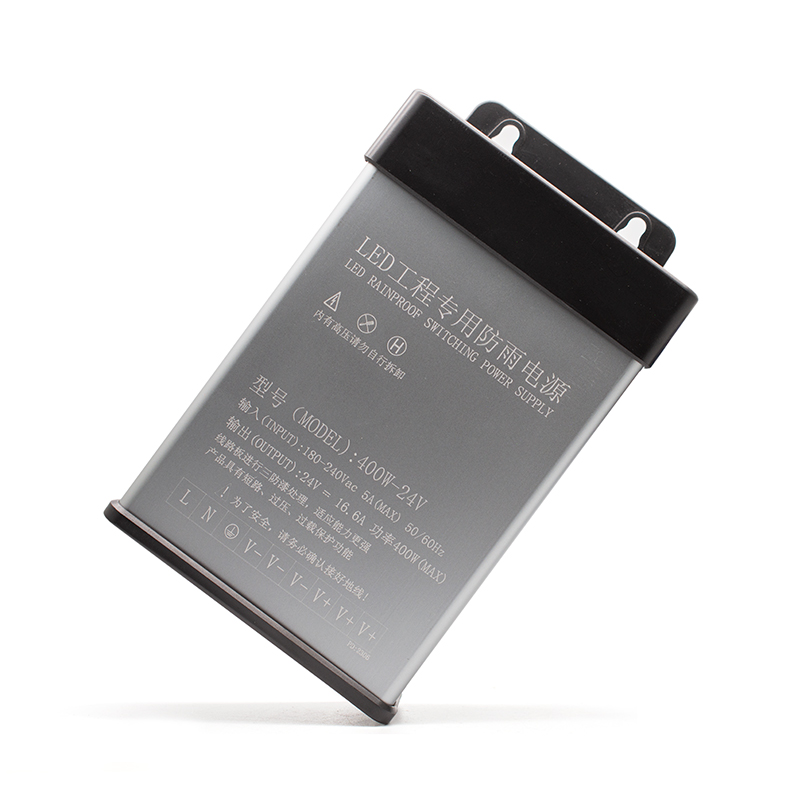

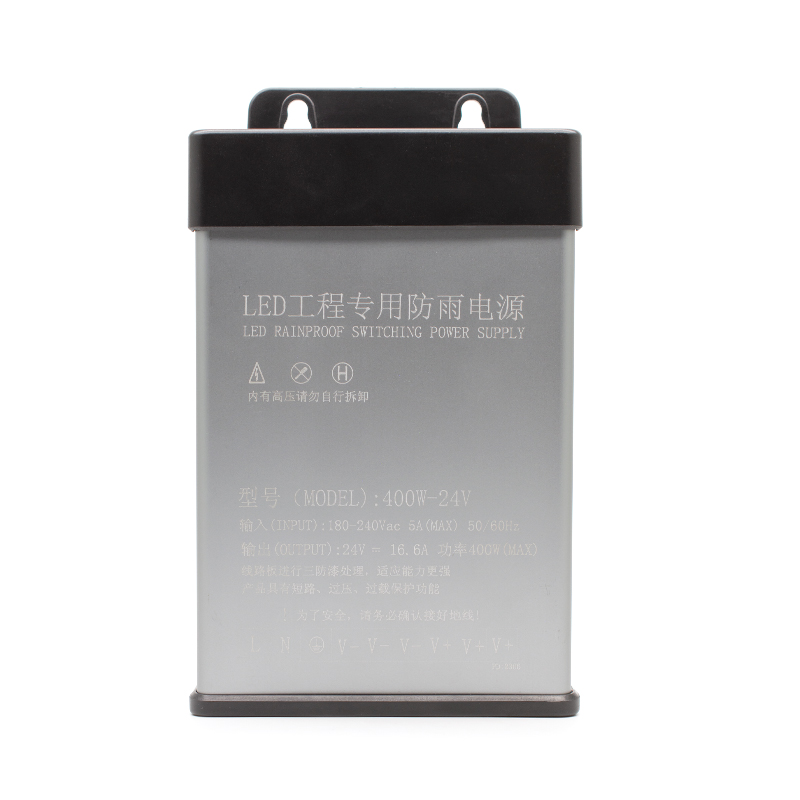

Outdoor Rainproof Power Supply





⛈️ Rainproof Slide Cover Series

IP54-rated metal case with slide‑cover design. Ideal for outdoor signage, facade, and landscape LED lighting.

Key Features

  • Power: 60W to 400W (5V/12V/24V)
  • Input: 200‑240VAC, 50/60Hz
  • Protections: Short circuit / Overload / Over‑voltage
  • Efficiency: up to 90% (9‑series)
  • 2‑year warranty on all models

Applications

Billboards, tunnel lights, garden projects, and any weather‑exposed LED installation.

Power Consumption
–

Cutting Interval

–

Voltage

PCB Width

–

LED Density

–

Luminous Flux

–
View Datasheet
Request Quote
CE

CE Certified

RoHS

RoHS Compliant

High CRI

3 Year

Warranty

IP65/67/68

Options

Flexible PCB

Bendable

Voltage

Product Options

Colour Temperature
2700K
3000K
3500K
4000K
5000K
6000K
Wattage
4.8W/m
9.6W/m
14.4W/m

Custom Wattage Available

Lumens
220 lm/m
1650 lm/m
Type
CRI

LED/M

CCT
IP
Cutting
Lumen (lm/m)
Power
Width
Downloads





ModelPowerOutputCurrentSize (mm)WeightQTYWarranty
Slide60‑12V60W12V5A130*74*420.19kg1242 years
Slide120‑12V120W12V10A146*74*420.24kg1082 years
Slide200‑12V200W12V16.6A154*94*480.31kg602 years
Slide200‑24V200W24V8.3A154*94*480.31kg602 years
Slide300‑12V300W12V25A184*93*490.36kg542 years
Slide400‑12V‑B400W12V33A191*117*490.44kg452 years
Slide400‑24V‑B400W24V16.5A191*117*490.46kg452 years
Slide400‑12V‑9400W12V33A191*117*490.47kg452 years
Slide400‑24V‑9400W24V16.5A191*117*490.46kg452 years
Slide350‑5V‑9350W5V70A191*117*490.48kg452 years
* All models 2-year warranty. 9‑series efficiency up to 90%.
